Products   >  4G Power Control   >  SimPal-T20-V2 Slave Socket
Product Name:

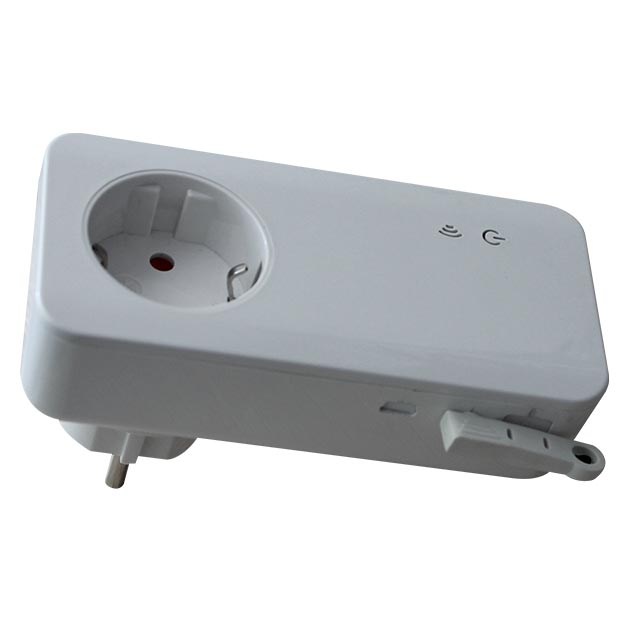

SimPal-T20-V2 Slave Socket
No. :
:
:


SimPal-T20-V2 wireless power socket, working as wireless accessories for Main unit. can be remotely turn power on/off, set schedule control, timer control. Come with temperature sensor, support temperature alarm and thermostat control.



All settings and device status information needs to be set via Main unit. This device only can work by pairing with Main units.



Model SimPal-S460, SimPal-S260-F, SimPal-T40-V2, SimPal-T420-V2, SimPal-G212-V2 etc Main units can work with this slave socket.

Main Features:

Remotely on/off power: Remotely send SMS to turn on/off power



Temperature alarm: Auto report temperature when out of setting range.



Work as thermostat: Connected with electric heater, it can make it work as thermostat. When temperature high, auto turn off power, when temperature drop down, auto turn on power. Easy to set temperature range on APP.



Schedule control: Easy set three groups schedule control or one group countdown control.


Technical Specification

Product size

125*60*80 mm EU plug)

Wireless Frequency

434Mhz FSK

SIM card slot

Plug and Socket type

Germay, French, UK, American available

Power input

AC 110~230V

Temperature sensor range

 -10℃~50℃

Indicator

Power output and wireless signal in Blue

Max power loading

16A or 3600W

Slave socket working distance

30-40 meters

Standby relay OFF power consumption

6mA

Standby relay ON power consumption

34mA
