Products   >  Accessories   >  WIR-053-F PIR detector
Product Name:

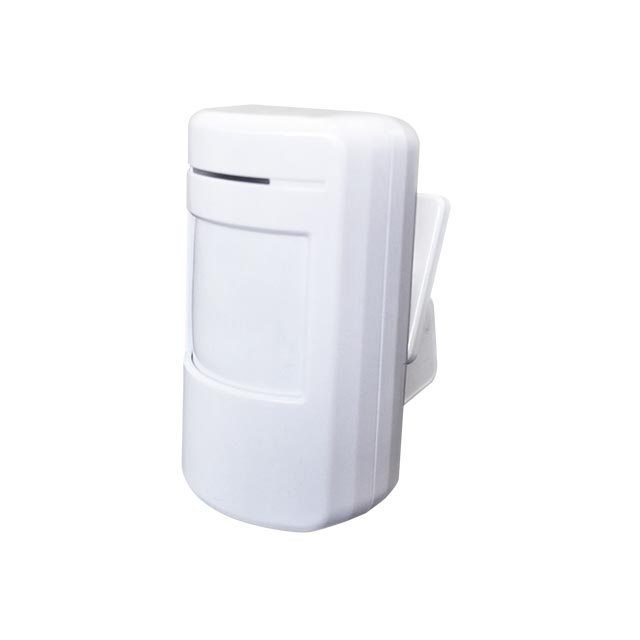

WIR-053-F PIR detector
No. :

WIR-053-F Wireless PIR Motion Detector can be working with GSM or WiFi main units for intruder alarm. When it detects human motion, will auto send code to main units, main units will send SMS or message to APP.


Its total wireless solution for intruder alarm, work with 2pcs AA size battery, can be last 1-2 years. No need power cable or wired installation. Max 10 meters detecting range and 110° detecting angle.


Applicable product model: W230-F, T40, T420-F, W240, G212

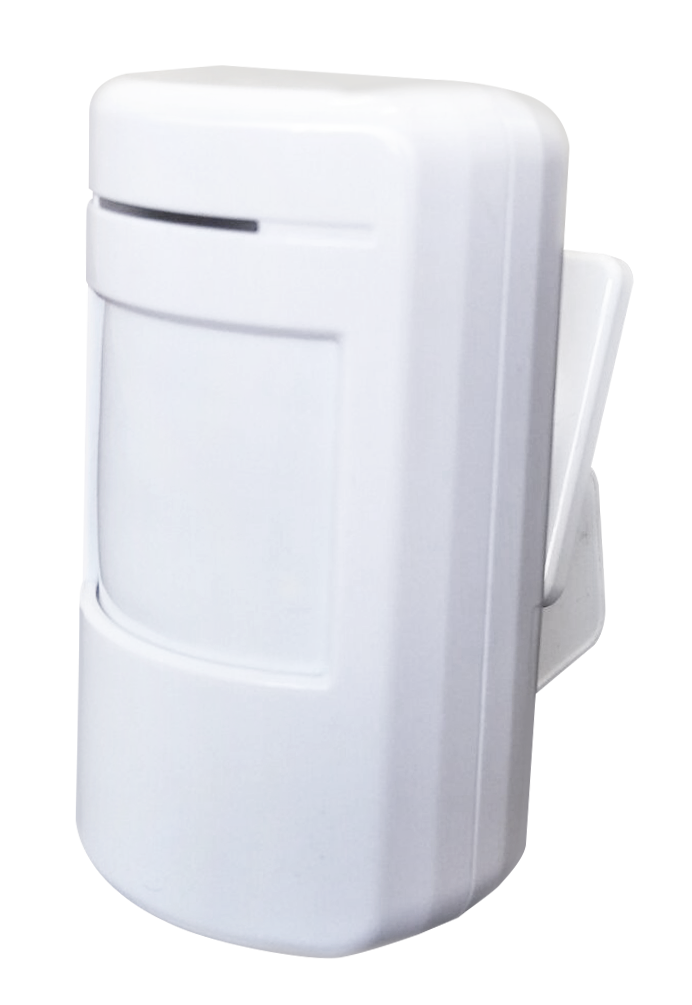

WIR-053-F PIR-1 - 副本.png

Power Supply DC 3V (AA 1.5V LR6 Battery x 2pc)
Alarm Current ≤20mA
Standby Current ≤25uA
Transmitting Distance ≤50m (in open area)
Radio Frequency FSK 433.92MHz
Housing Material ABS plastic
Operating Condition Temperature: -10°C~+55°C
  Relative Humidity: ≤80% (non-condensing)
Dimensions (LxWxH) 106 x 60 x 46mm
