Products   >  4G Water Valve   >  SimPal-V10 Slave Valve
Product Name:

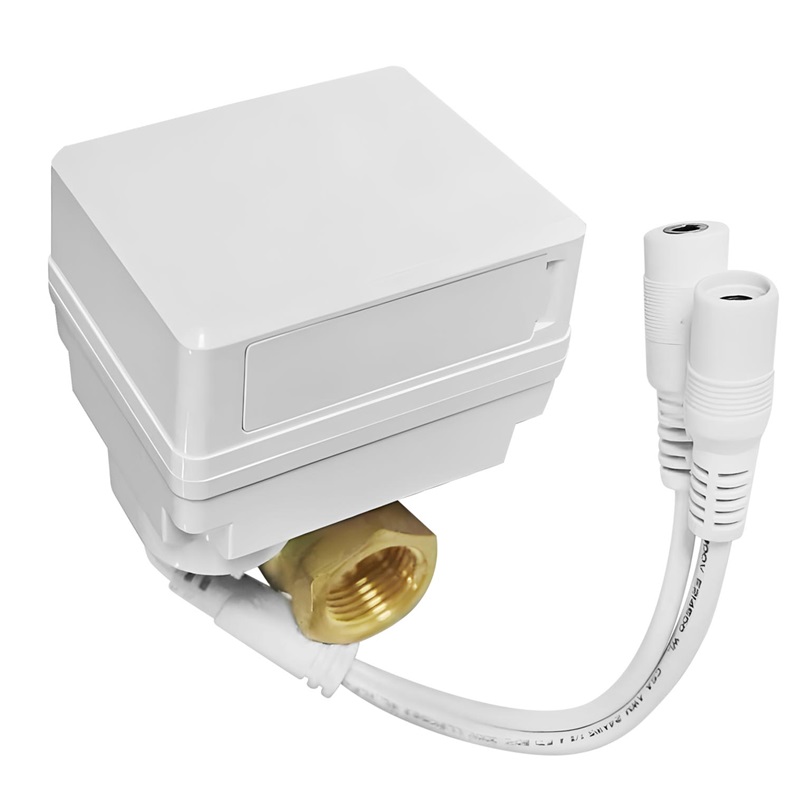

SimPal-V10 Slave Valve
No. :
SimPal-V10
:
:


SimPal-V10 Wireless Water Valve is a simple and powerful wireless control valve. It can be connected with main unit SimPal-V640 4G Water Valve and control by mobile APP or SMS commands. It come with wired water leakage detector, automatically turn off valve when detect water leakage. It can turn on-off valve according your schedule, timer turn on valve for some minutes etc.


Use for home water leakage preventionsuch as use to control water valve for dishwasher, coffee machines, wash machine etc. It also can use to control house water heating, remote turn on water heating before you arrive home.

Main Features:

Remote turn on-off valve

Connected with SimPal-V640 4G valve and remotely turn on-off valve by mobile APP or SMS commands.



Water leakage control

Come with wired water detector, it can auto turn off valve once detect water leakage and send SMS to report the leakage.



Multi modes auto control

The device can support schedule control, timer control etc.



Optional valve size

Default DN15 brass valve size, optional DN8-DN32 available.

Technical Specification

Product size

67×58×55 mm Control unit)

56×31×31 mm (brass valve)

RF frequency

434Mhz FSK

SIM card slot

Standard SIM card 15×25mm

Valve size

Brass DN15 (Optional DN8-N32)

Valve body thread

NPT BSP

Working pressure

Max 1.0 MPa

Motor power

<5W

Valve on-off time

3-4 seconds

Waterproof IP level

IP44

RF frequency

434Mhz, 20-30 meters range

Power supply

DC 12V 1A


Packing content:

Wireless valve: 1PCS

Water detector: 1PCS

Power adatper: 1PCS

User manual: 1PCS
