Products   >  4G Power Control   >  SimPal-WS420 4G Outdoor Socket
Product Name:

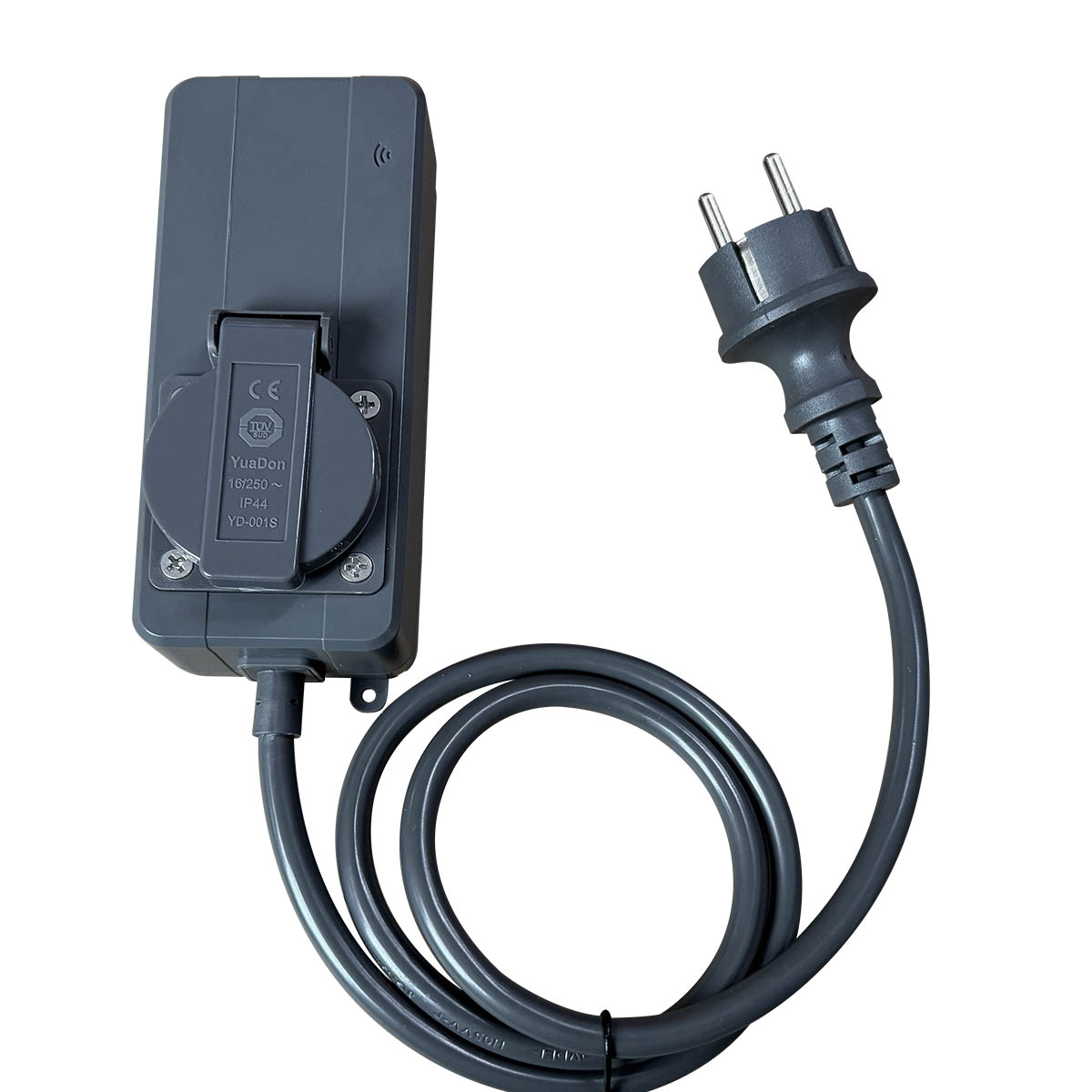

SimPal-WS420 4G Outdoor Socket
No. :
:
:


SimPal-WS420 4G Outdoor Socket is a simple and powerful device to remote control the power to the electrical appliances at home via SMS or app in mobile. The socket support power metering function, it can report daily power usage or alarm when power load abnormal, It also functions as an alarm during a power failure.

 Web 2.jpg

SimPal-WS420 can be used as a router for wireless slave sockets and sensors. It can connect wireless temperature and light sensor for thermostat control and twilight control. Connect up to 4pcs slave sockets and 6pcs wireless sensors.



With IPX4 waterproof level, it can widely use for garden / farm power control, electrical appliances power loading monitor, temperature monitor and power failure alarm etc.


Main Features:

1. Turn on/off power via SMS or APP

Working on 4G LTE network, can be easy remote turn on/off socket power by send SMS or APP on mobile phone.



2. SMS alert of power failure

SMS alert to your mobile phone when 230V power failure or restore.



3.  Schedule turn on power

Set three groups schedule to make the socket automatically turn on the power. It also can set timer control to turn on power for certain minutes.



4. Power load monitor

The socket can monitor power load, automatically send SMS when power load out of setting range. Daily/Weekly/Monthly report power usage.



5. Connect wireless accessories

Connect WTL-063-F wireless temp & light sensor for temperature monitor, thermostat control and twilight control. It can work with 4pcs slave socket and 6pcs wireless alarm sensor.



6. Big power load and IPX4 waterproof level

IPX4 waterproof level and max 16A 3500W power load.


Technical Specification:

Model

SimPal-WS420

Product size

160*58*48 mm EU plug)

Cable length

80 cm

Plug and Socket type

European Plug

Waterproof level

IPX4

4G Frequency

Cat1

LTE FDD: B1, B3, B5, B7 ,B8 ,B20

LTE TDD: B40

GSM 900/1800Mhz

RF frequency

434 Mhz FSK (30-40 meters range)

Power input

AC 110~250V

Indicator

Blue and RED

Max power loading

16A/3500W

Standby power consumption

17mA

Working temperautre range

-30 to 35C
