产品中心   >  涂鸦WiFi产品   >  SimPal-TY150 Tuya WiFi Valve
产品名称:

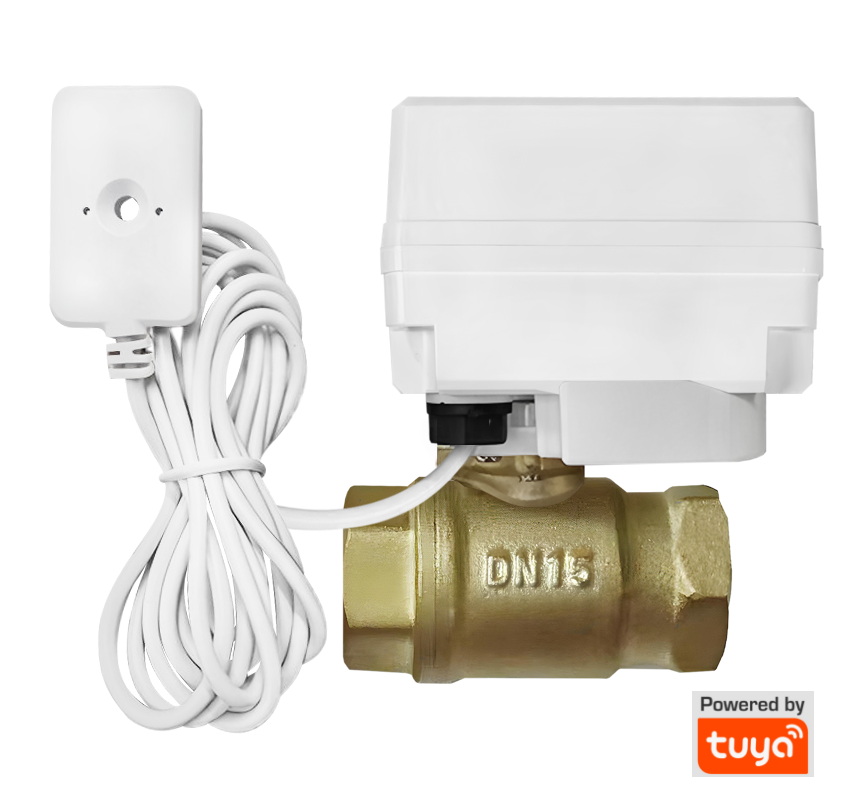

SimPal-TY150 Tuya WiFi Valve
No. :
SimPal-TY150
:
:


SimPal-TY150 WiFi Water Valve is a simple and powerful device to remote control valve on-off via Tuya Smart life APP in mobile phone. It come with wired water leakage detector, automatically turn off valve when detect water leakage. It can turn on-off valve according your schedule, timer turn on valve for some minutes etc. The WiFi water valve can connect 5 pcs wireless sensors, such as wireless water detector, wireless smoke detector, wireless PIR detector etc accessories to monitor your house.



Use for home water leakage prevention, such as use to control water valve for dishwasher, coffee machines, wash machine etc. It also can use to control house water heating, remote turn on water heating before you arrive home.




Main Features:

Turn on/off valve remotely

Device works with Tuya Smart life APP, remotely turn on-off valve by calling or APP on your mobile.



 Water leakage control

Come with wired water detector, it can auto turn off valve once detect water leakage and send notification on APP.



Works with wireless accessories

Support to work with 5pcs wireless accessories, such as wireless smoke detector, wireless water detector etc accessories to monitor your house.



Multi modes auto control

The device can support schedule control, timer control, wireless sensor trigger to control the valve etc.



Optional valve size

Default DN15 brass valve size, optional DN8-DN32 available.


Technical Specification:



Product size

67×58×55 mm Control unit)

56×31×31 mm (brass valve)

WiFi Frequency

2.4G 802.11 b/g/n

Standby power

50-60mA

Valve size

Brass DN15 (Optional DN8-N32)

Valve body thread

NPT BSP

Working pressure

Max 1.0 MPa

Motor power

<5W

Valve on-off time

3-4 seconds

Waterproof IP level

IP44

Power supply

DC 12V 1A





Packing content:

SimPal-TY150 WiFi valve: 1 PCS

Water detector: 1 PCS

Power adapter: 1 PCS

User Manual: 1 PCS
