产品中心   >  电源控制   >  4G LTE插座
产品名称:

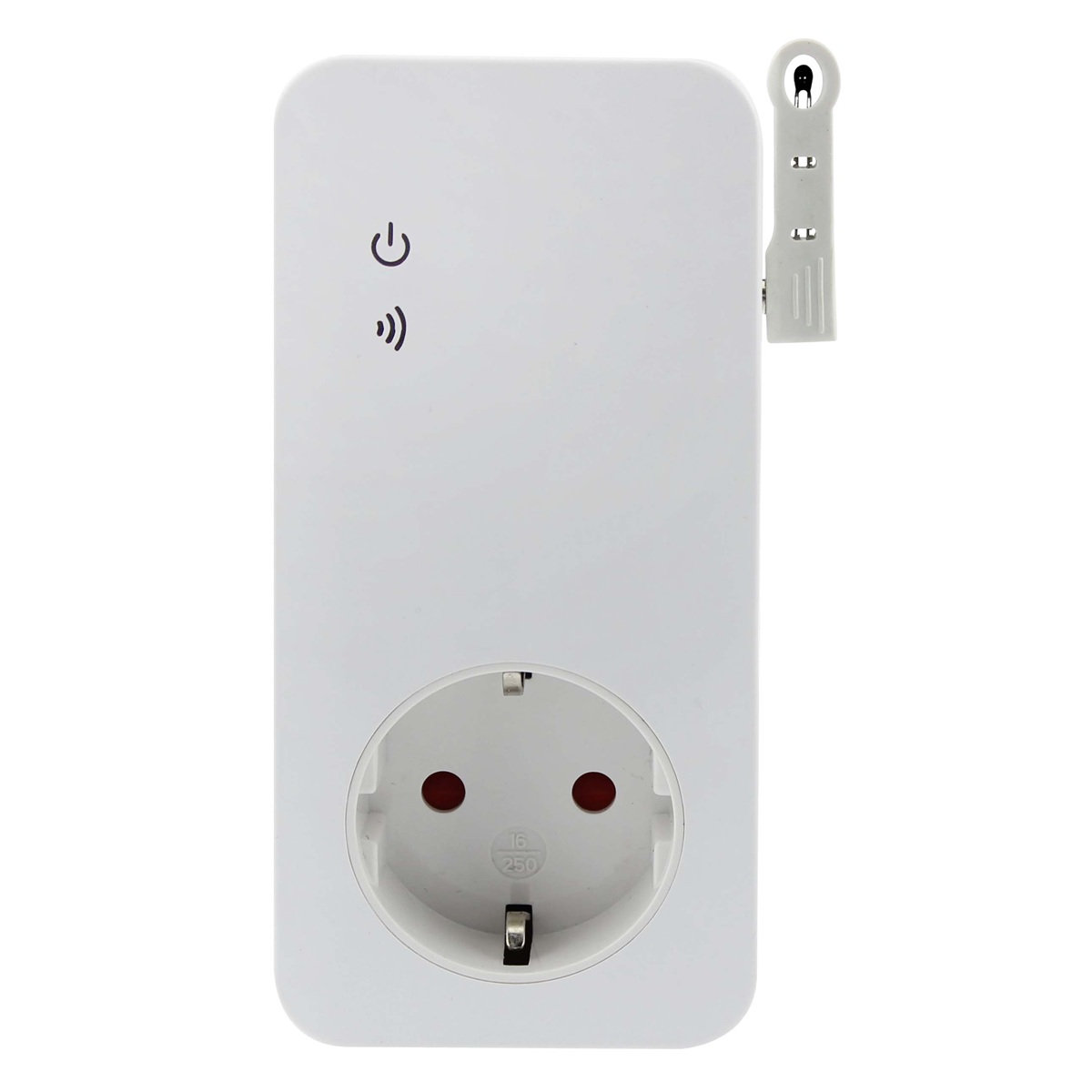

4G LTE插座
No. :
SimPal-T420-V1
:
:


SimPal-T420-V1 4G power socket is one of simple remote power control device, Work with 4G SIM card, remotely turn on/off the power output by SMS or APP on mobile phone.  It also functions as an alarm during a power failure or temperature deviations. Switching on or off the current can be controlled according to a schedule or with a thermostat function. It can monitor the electrical devices power loading and report daily power consumption.



Use for home power remote control, temperature monitor and power failure alarm etc. Can be use to control home heating device, router reboot, electricity application control etc.



bannar-T40(1200x350)(1) - 副本.jpg

Main Features:

Turn on/off power remotely

Work on 4G network, no WIFI or internet request, Send SMS or use APP turn on/off power remotely.



SMS alert of power failure

SMS alert to your mobile phone when 220V power failure or restore.


Multi-modes auto control

Come with temperature sensor, support thermostat control for electricity heater. Support three groups schedule control, one group timer control.


Temperature monitor

Temperature sensor included on each socket, SMS alert to your mobile phone once the temperature out of setting range.


Monitor power load and report power consumption

Devices come with power meter, it can monitor electrical power load and report daily power consumption.



Worldwide socket types

Germany, France, Australia, American and British socket plug available.



Difference between T420-V1 and T420-V2:



Function

T420-V1 model

T420-V2 model

4G Bands

Cat1
LTE FDD: B1, B3, B5, B7 ,B8 ,B20, B28

Cat1
LTE FDD: B1, B3, B5, B7 ,B8 ,B20, B28

LTE TDD: B38/B40

Voice calling

No support

Support

Power meter function

Yes, 0-3500W  (±5%)

No support

Work with slave socket

and sensors

No support

Yes, max 4pcs slave sockets and

8pcs wireless sensors

Price

Low

High



Technical Specification:



Product size

125*60*80 mm EU plug)

4G LTE Frequency

Cat1
LTE FDD: B1, B3, B5, B7 ,B8 ,B20, B28

SIM card slot

Standard SIM card 15×25mm

Plug and Socket type

Germany, French, UK, US available

Power input

AC 110~250V

Temperature sensor range

 -30℃~70℃ (±2C)

Indicator

Power output and wireless signal in Blue

Max power loading

16A or 3600W

Power meter range

0-3500W  (±5%)

Standby power consumption

12mA 12V
